Product Overview
Our M15-BFM NBR Clip-on Intermediate/Channel Gasket is a high-quality, non-OEM compatible replacement designed for M15B plate heat exchangers, featuring durable NBR material and clip-on installation. As a professional heat exchanger gasket and spare parts manufacturer, we supply replacement components for industrial maintenance worldwide.
Product Technical Datasheet Download
Download the M15-BFM NBR Clip-on Intermediate/Channel Gasket Technical Datasheet (PDF) for detailed technical specifications, gasket dimensions, material information and installation details. This document helps customers verify product compatibility before purchasing.
📃 Download Technical Datasheet (PDF)
Actual Product Photos & Technical Drawing
View actual product photographs and the reference technical drawing of our M15-BFM NBR Clip-on Intermediate/Channel Gasket, including its overall dimensions, sealing profile, attachment details and export packaging.

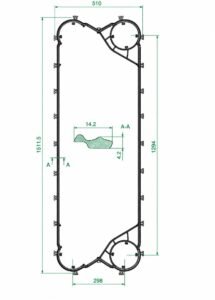

1. M15B Clip-on Intermediate Gasket – Technical Drawing
The reference drawing provides dimensional information for preliminary gasket identification and comparison.
- Overall Reference Dimensions: 1511.5 × 510 mm
- Port Center Distance: 1294 × 298 mm
- Gasket Cross-Section A-A: 14.2 × 4.2 mm
- Gasket Configuration: Clip-on / Intermediate
Note: These dimensions are taken from the reference drawing and have not been independently verified as final manufacturing specifications for every M15-BFM configuration.

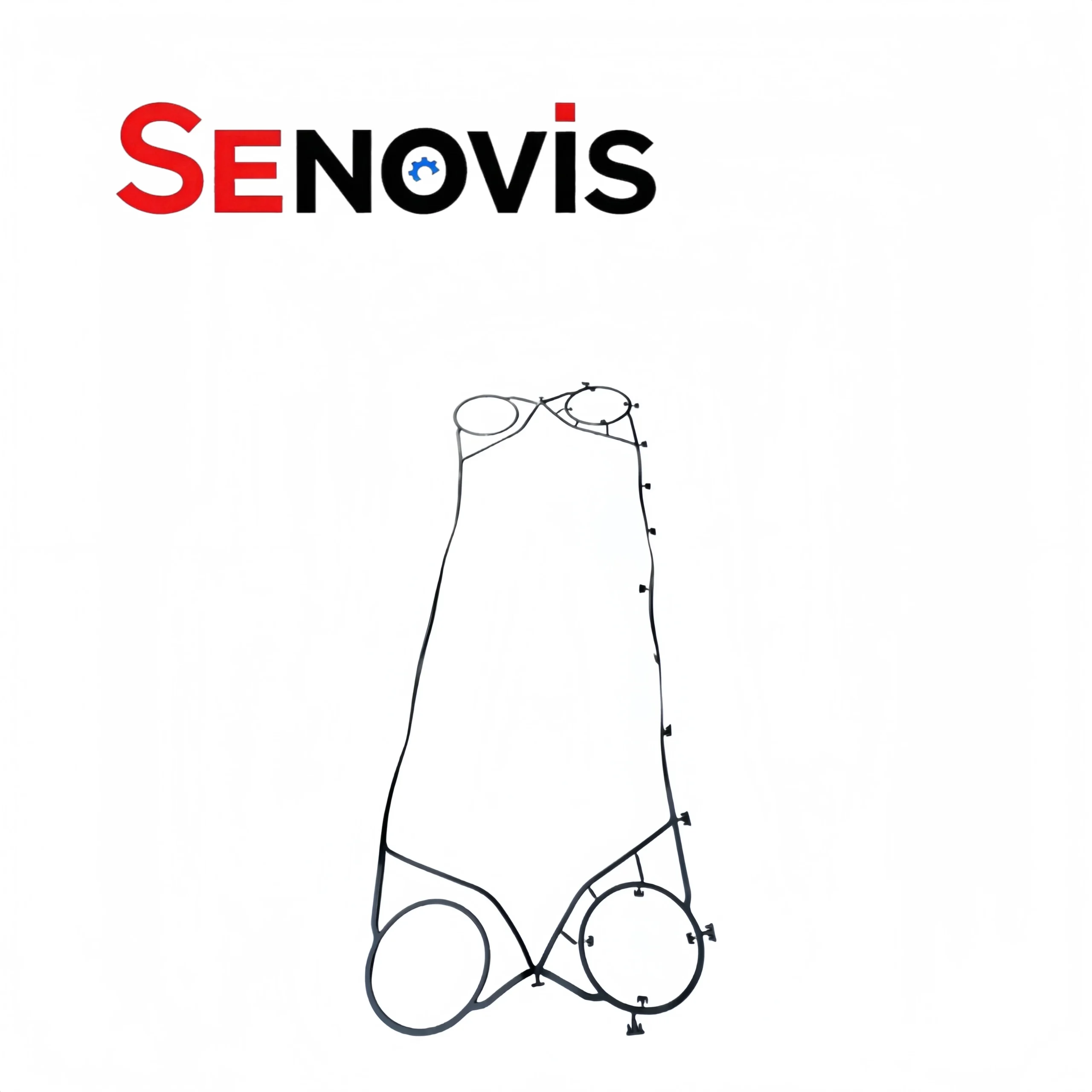

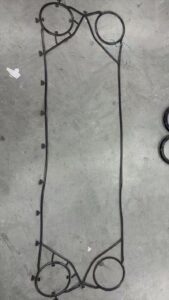

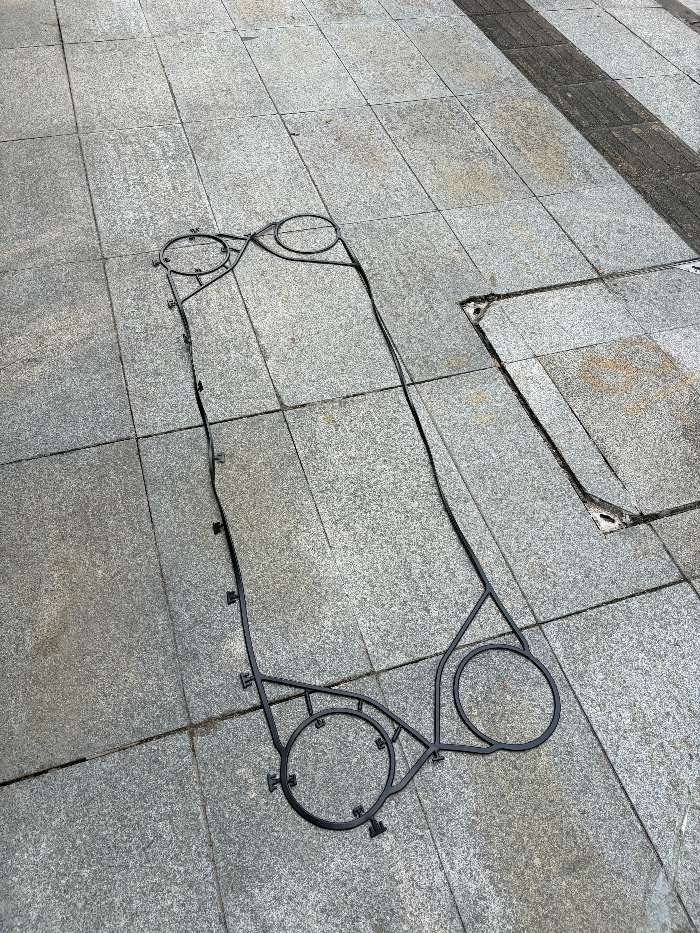

2. Actual Product Photo – Full Gasket View

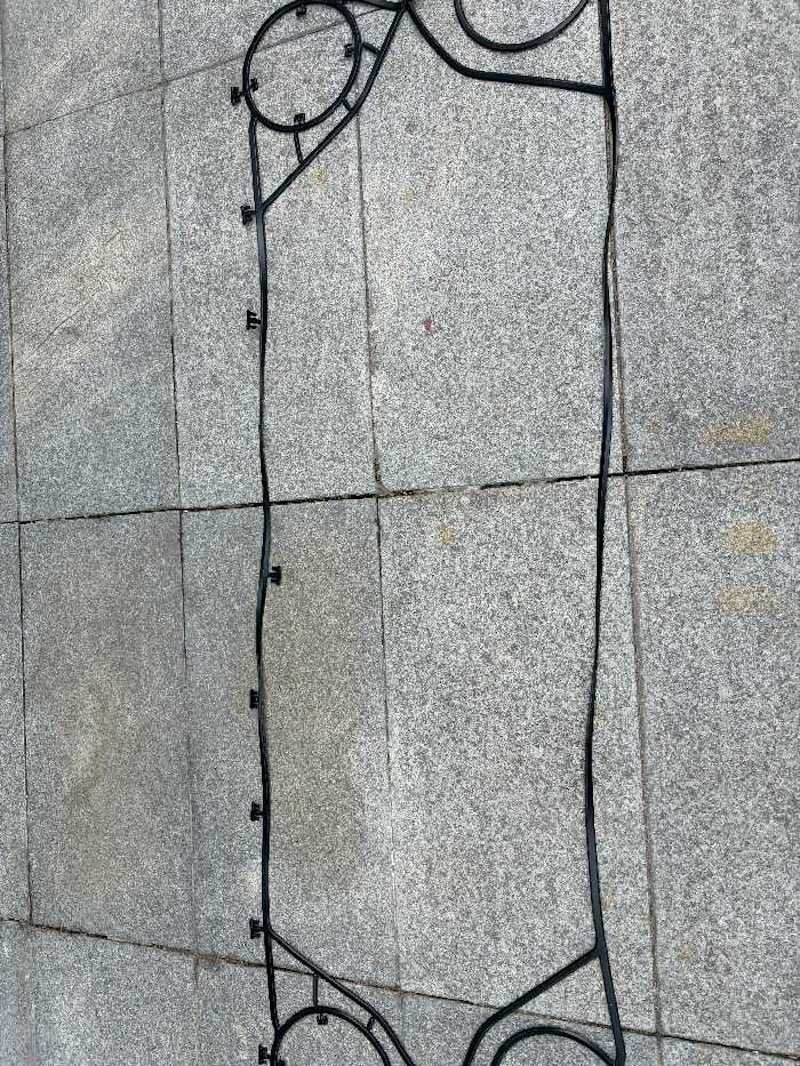

Close-up view of the gasket sealing profile and mechanical attachment areas.
This photograph shows the complete gasket outline and overall sealing structure, helping customers compare the replacement gasket with their existing component.
3. Replacement Gasket Packaging
Actual packaging photograph illustrating how industrial replacement parts are prepared for international shipment. Packaging may vary depending on order quantity and destination.
Product photographs and drawings are provided for reference. Please confirm the gasket profile, material, dimensions and installation method before ordering.
Other Products, RFQ & Technical Support
In addition to this intermediate gasket, compatible Alfa Laval heat exchanger gaskets and other replacement components may be available upon request, including:
- M15-BFM Initial & Final Gaskets
- M15-BFM Rubber O-Rings
- M15B Replacement Plates
- Alternative Gasket Materials and Configurations
- Other Compatible Plate Heat Exchanger Spare Parts
For customers searching for Alfa Laval PHE gasket products, Alfa Laval heat exchanger spares or Alfa Laval plate heat exchanger gaskets, we can assist with product identification and quotation requests.
We also support inquiries involving the broader Alfa Laval M-Series Plate Heat Exchanger range, including equipment commonly identified under Alfa Laval M Series Heat Exchanger, M10, M15 and M10B.
For bulk orders, alternative models, technical support or international shipping inquiries, please contact us.
Email: sales@senovis-phe.com
WhatsApp: +86 1765 165 8915
